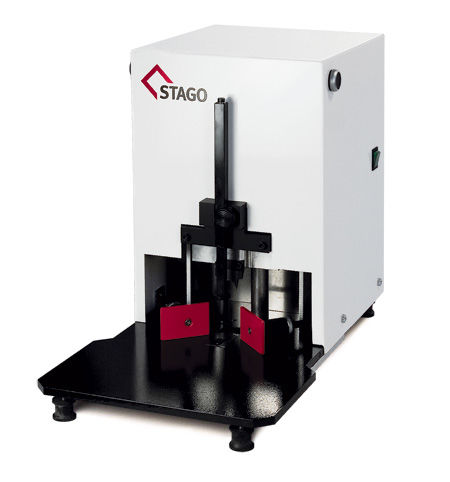

STAGO ESM 20 A corner rounder

STAGO ESM 20 A corner rounder

Automatic  round  cornering  machine  for  angular  cuts  and  round  cornering  up  to  DINA  3  material  size  
(w/o  knife)

With  its  unassuming  exterior,  the  ESM-A  table  machine  captivates  in  particular  with  inner  values:  
An  extremely  robust  construction,  high-quality  guides,  a  high-performance  electric  drive  combined  with  through-hardened  
and  precision-ground  cutting  blades  ensure  perfect  punching  results.  
Whether  round  or  straight,  the  ESM-A  punches  its  way  easily  through  up  to  400  sheets  of  paper.  The  machine  can  also  punch  cardboard,  
plastics,  textiles,  leather,  light  metals,  and  much  more.  
Ergonomic  design,  ease  of  use  and  standard  operator  safety  by  two-hand  operation  round  off  the  power  pack.

Features  and  technical  equipment
Punching  capacity:  up  to  400  sheets  (40mm,  80g  paper
Punching  radius:  R3,5/R7/R10/R12/R15/R20,  streight
Table  size:  up  to  DIN  A4
Version:  table
Driving  power:  0,32  kW
Machine  dimensions:  450/620/400
Weight:  35  kg
Power  supply:  230V  /  50Hz,  110V  /  60Hz*
Options:  base  frame

*  optional
Category: Corner rounders
Code: DP04010005
